VOC filtration
Powder reclaim and VOC treatment in the painting process are critical for the environment
Target equipment：
| Powder Coating Booth： | The powder paint are environmental friendly, however the painting efficiency is not high. A reclaiming system for bigger powders particles is necessary both for the purpose of recollection and betterment of working condition.. |
| Paint Booth： | Creats a lot of VOCs that post big threats to health. Wet scrubber is needed to wash off the VOCs. |
| Curing Oven： | VOCs created during the drying and curing process of the surface need to be treated. |
Dust Features：
Paint powders are free of VOC pollutant. But a high condensation in the working space post combustion risk.
As paint contains organic solvent,the exhaust is high temperature oily VOC fume, toxic and flamable.

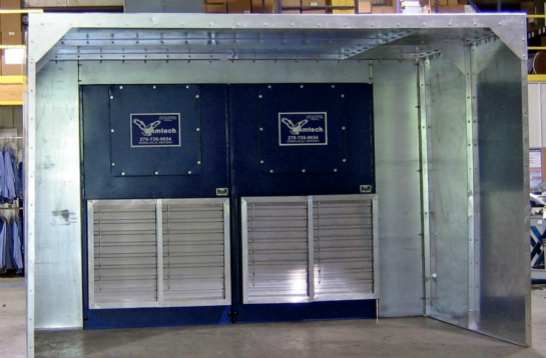

PFC-P Series Paint Booth
Vertical reverse pulse design for better dust settlement and longer filter life
Integreted dust collection set, save duct cost
99.97% HEPA filter
Maintanance friendly design in the front and the cartridge changing style.
PFC-V Series Cartridge Filter
Small foot print
Choose filter accoridng to different paint features
Patent downflow design
PFC-S Seride Scruber
Wash out hydrophilic compounds, clean the air
Low noise, steady operation
-
Paint Booth Design
The paint booth needs to be designed with slots at certain velocity to make sure the fugitive particle get captured while the painting particle does not get sucked away.
A scientific design of recycling flow current
-
Explosion proof system
AS relatively weak section in the collector structure，when pressure withing the bag house reaches preset limit, explosion proove vent will be smashed and release the explosion, guilding the flame to safe area. The blast gate can bring down the explosion damage to the collector to minumn 。
